Maple View (005)
957 E Belvidere Rd | Grayslake, IL 60030
Maple View (005)
957 E Belvidere Rd | Grayslake, IL 60030
General Information
- Square Footage
1,962 sf (Gross Lease Area) - Building Height
19'-0" (Exterior Parapet Height)

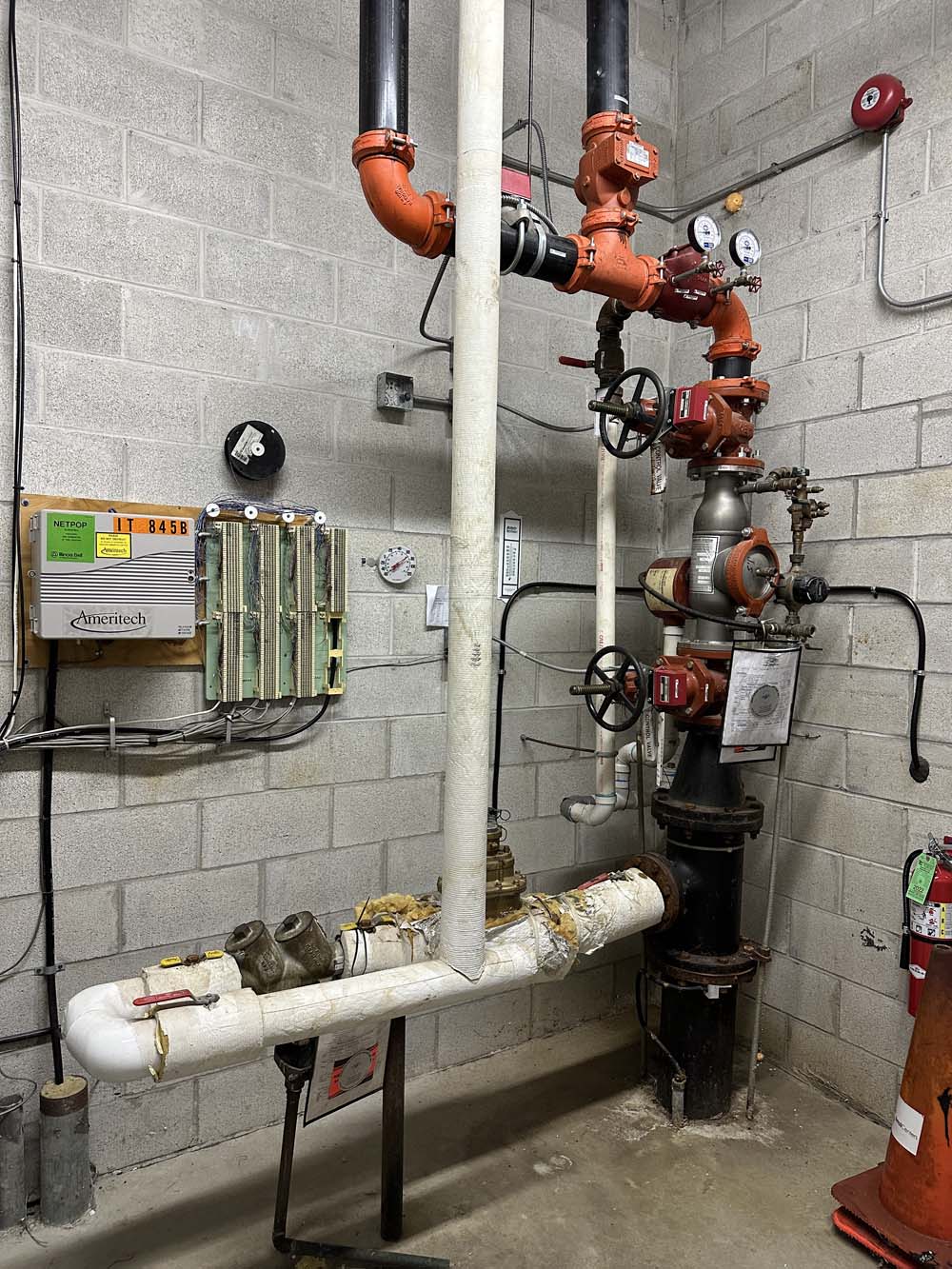

12'-8" (Structural Clear Height - Lowest Point) - Fire Sprinkler

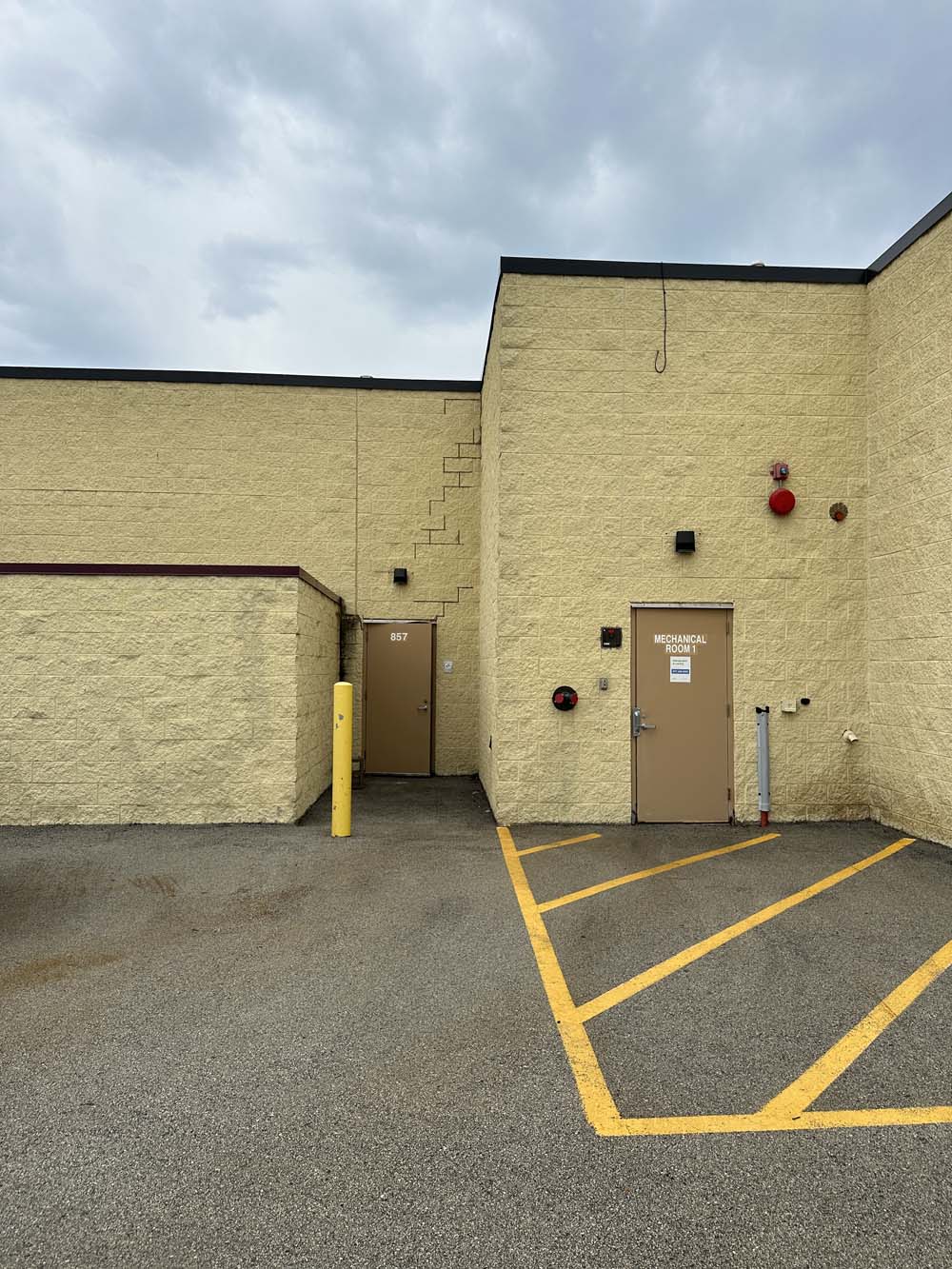

Remote Fire Room
Location: Adjacent - SE of Rear Door

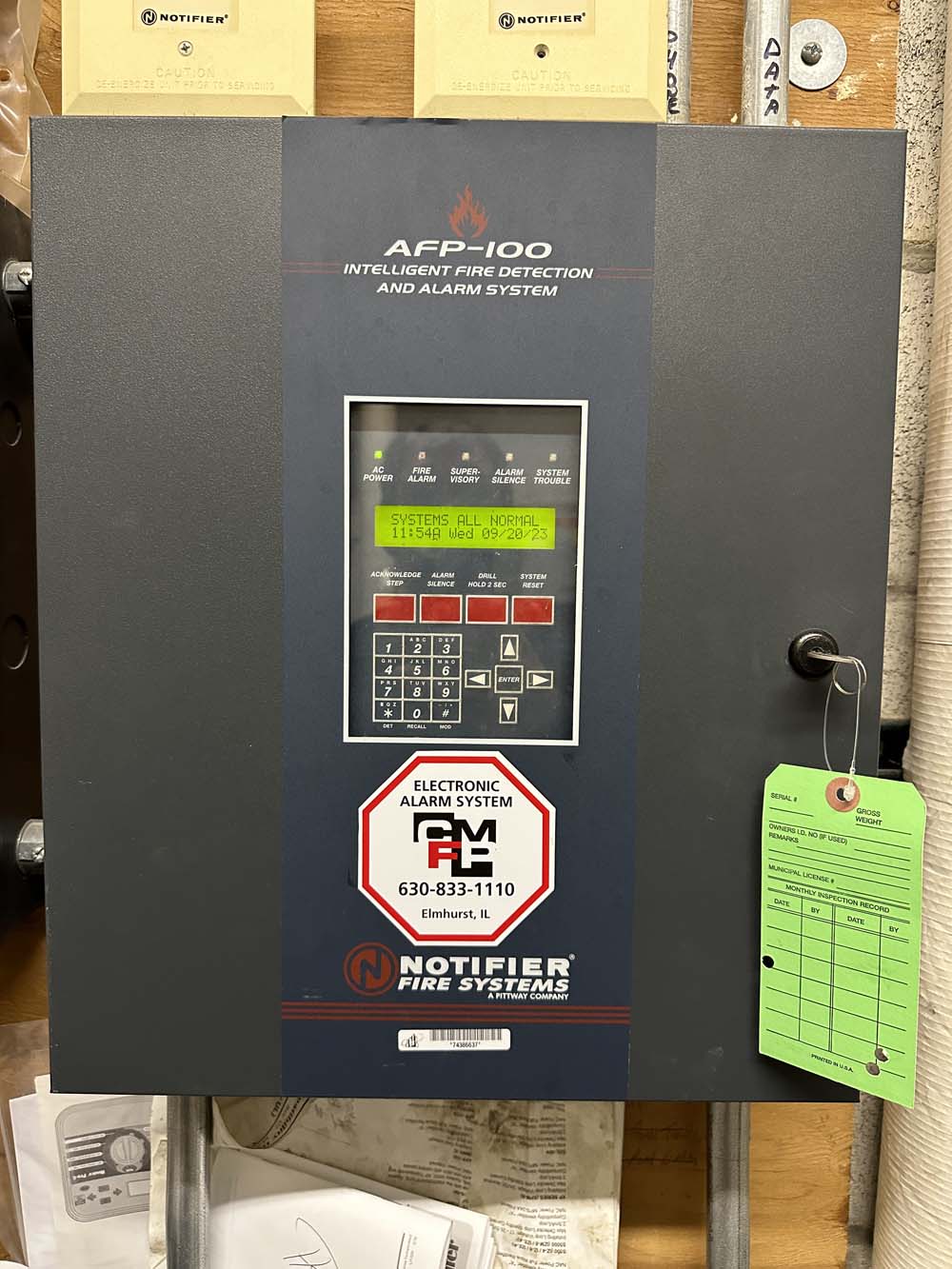

4" Dia. (Riser) - Fire Alarm Panel
Remote Fire Room
Location: Adjacent - SE of Rear Door
Notifier (AFP-100)
Utility Information

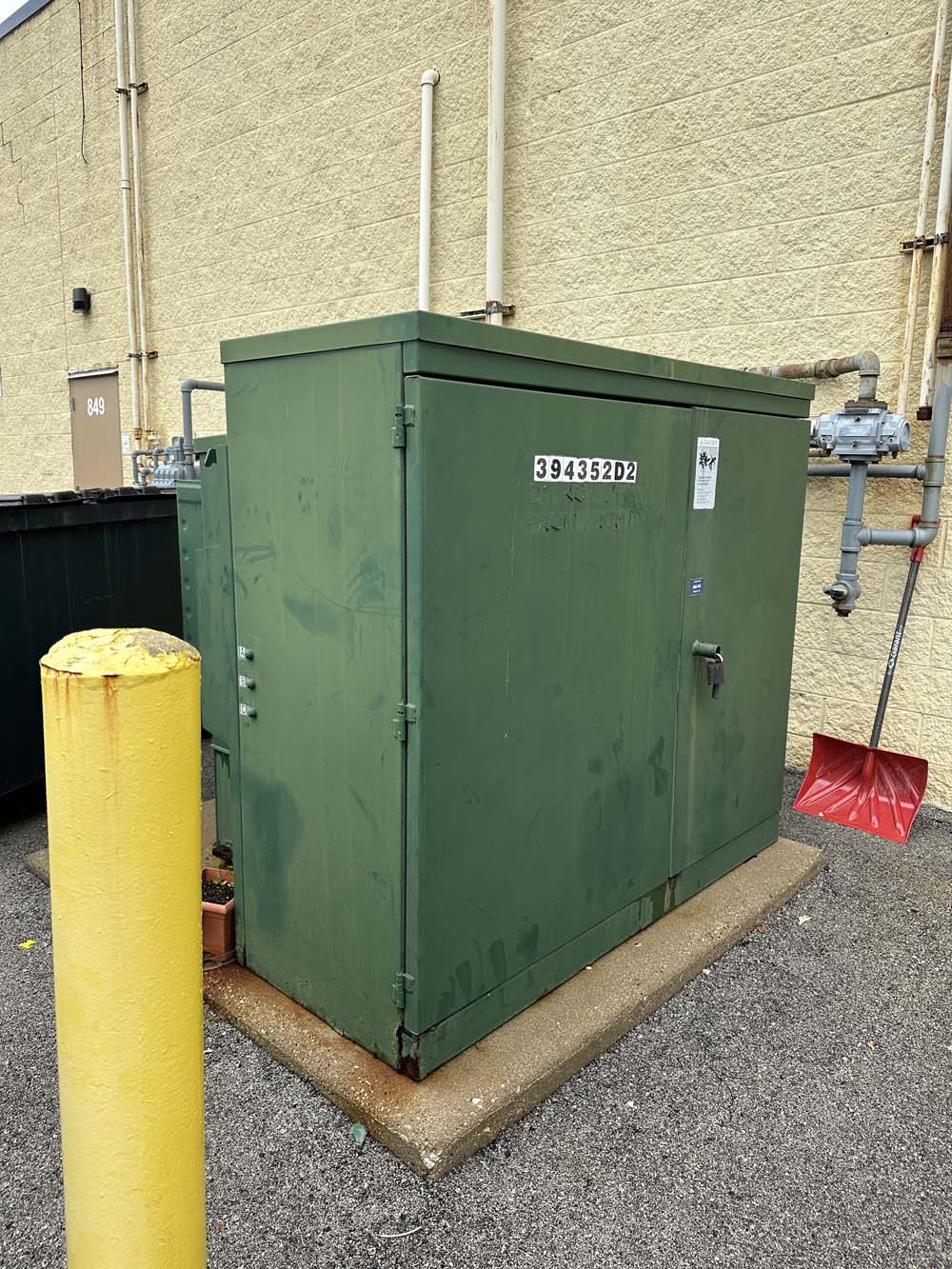

- Electrical Transformer
Undetermined kVA

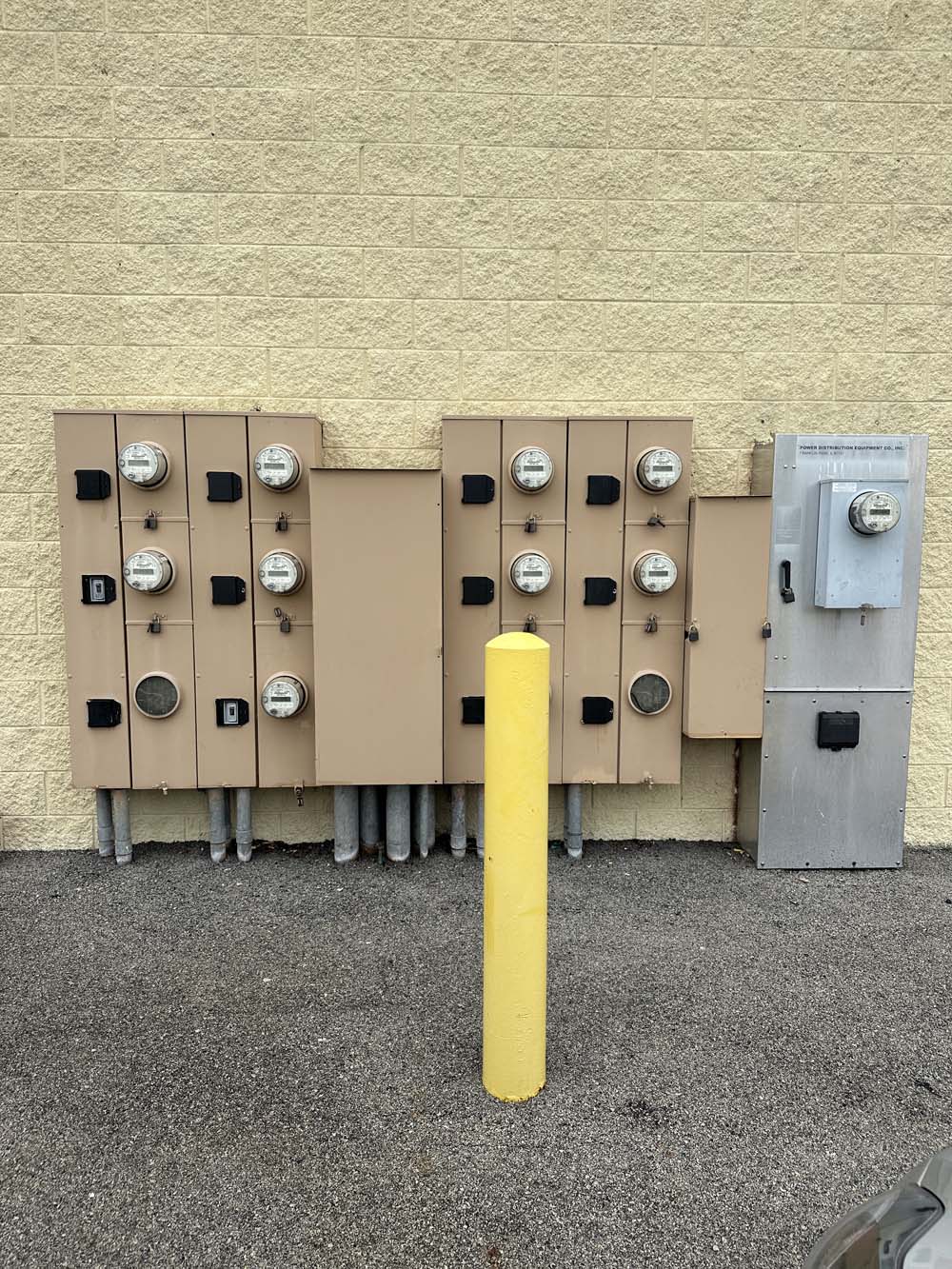

Location: Exterior - 70’ West of Rear Door - Electrical Service | Meter
Undetermined (Service)
Location: Exterior - 60’ West of Rear Door

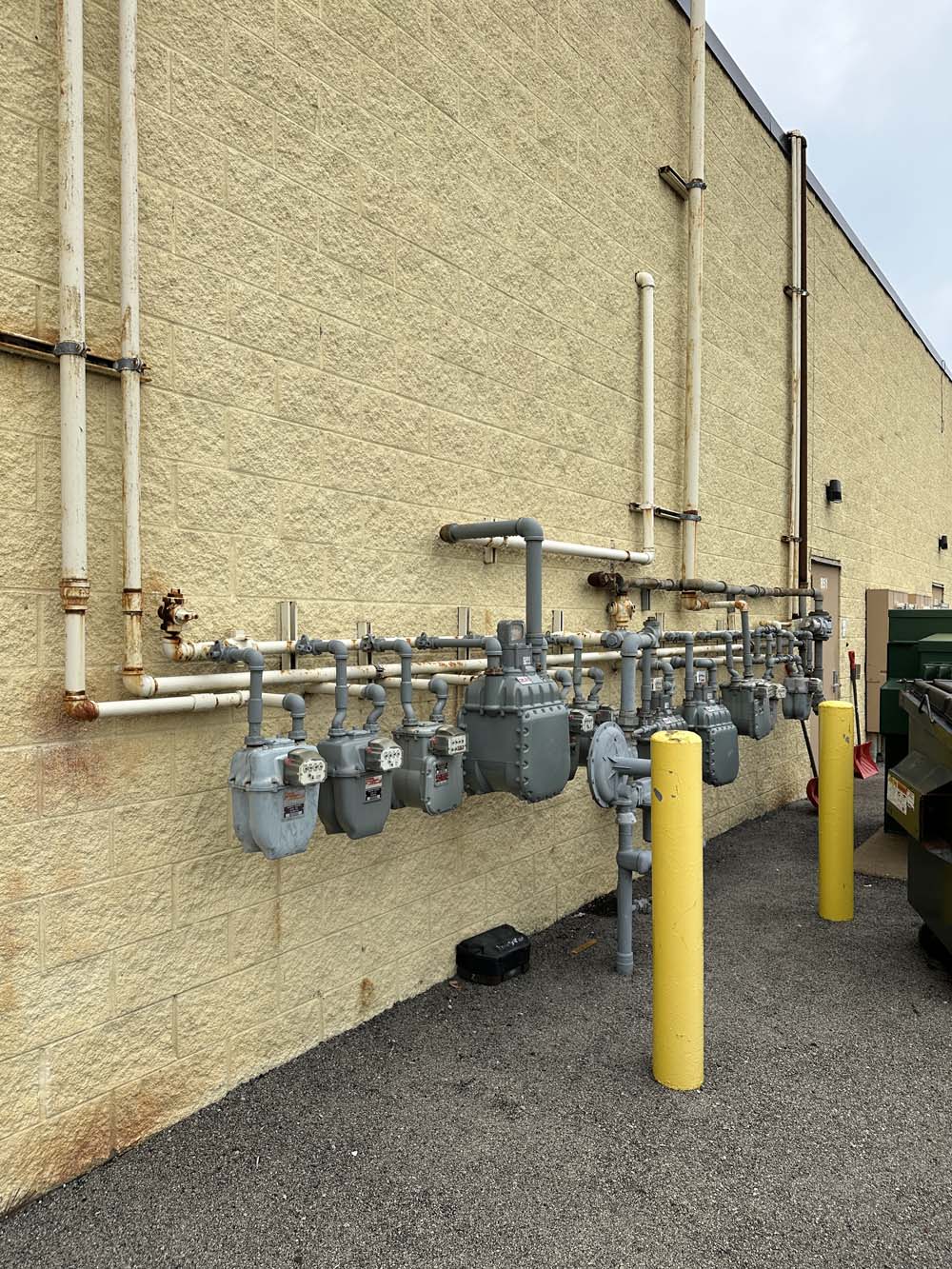

Meter No.: Undetermined - Gas Service | Meter
2" Dia. (Service)
Location: Exterior - 80' West of Rear Door

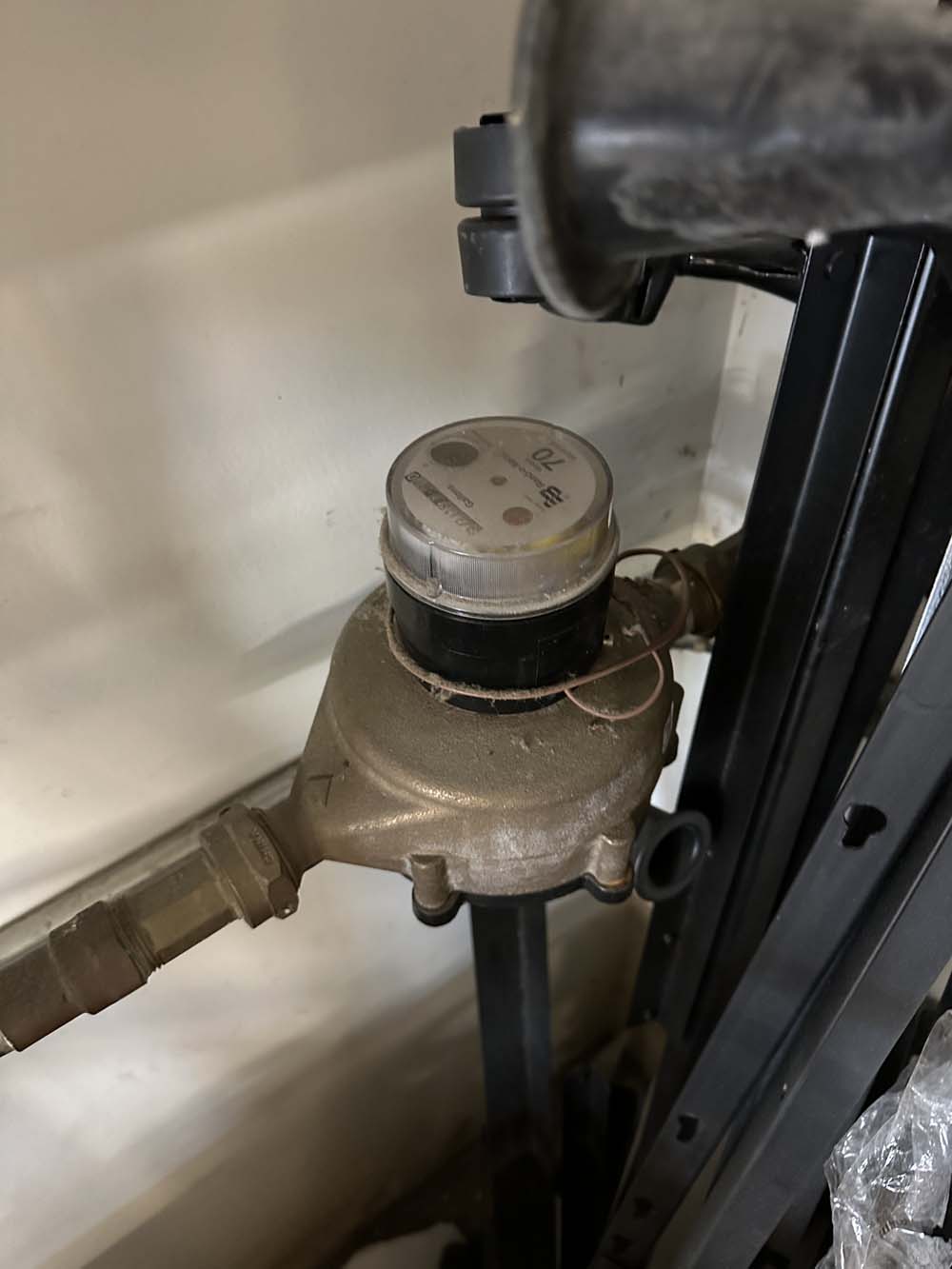

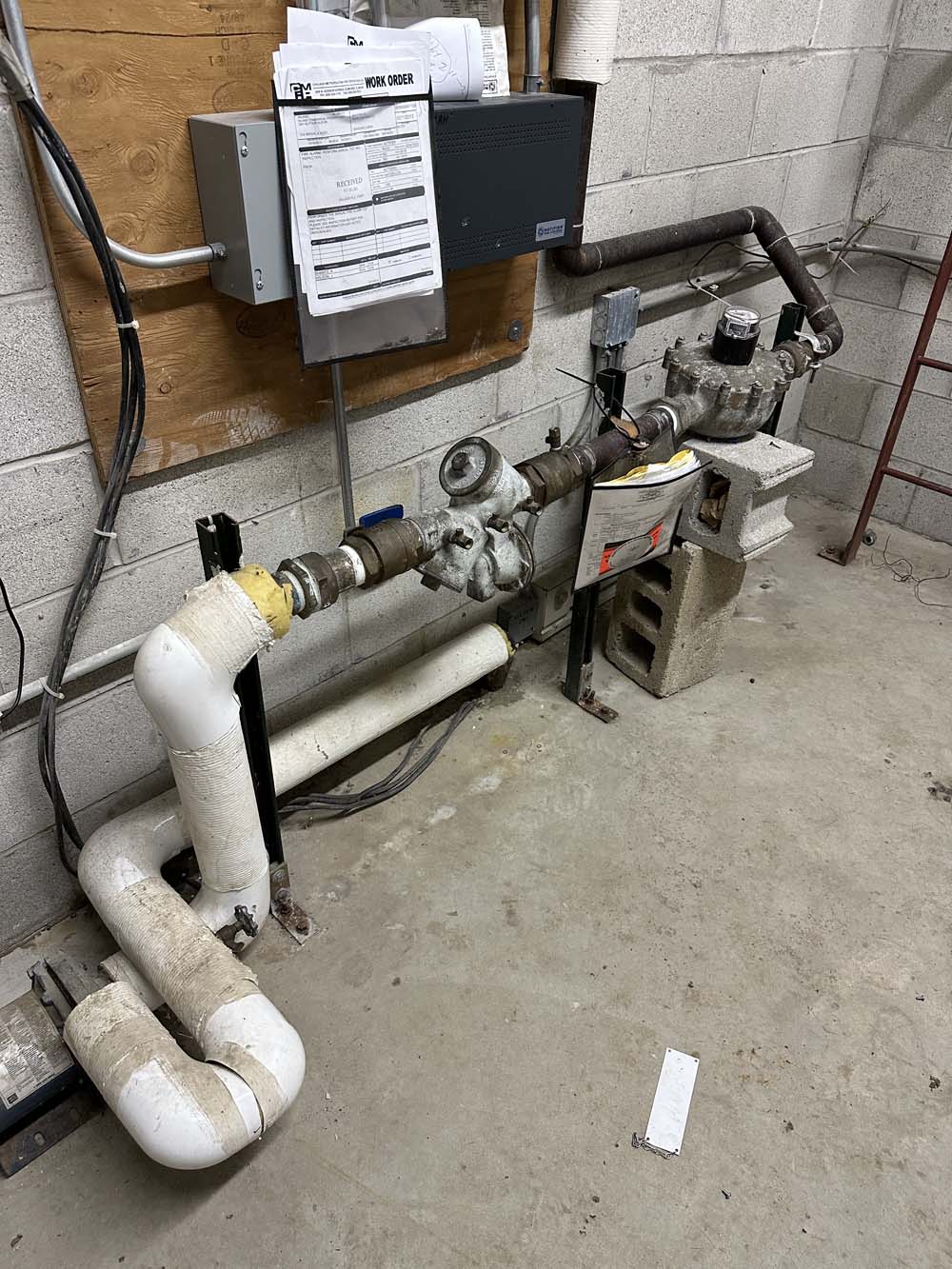

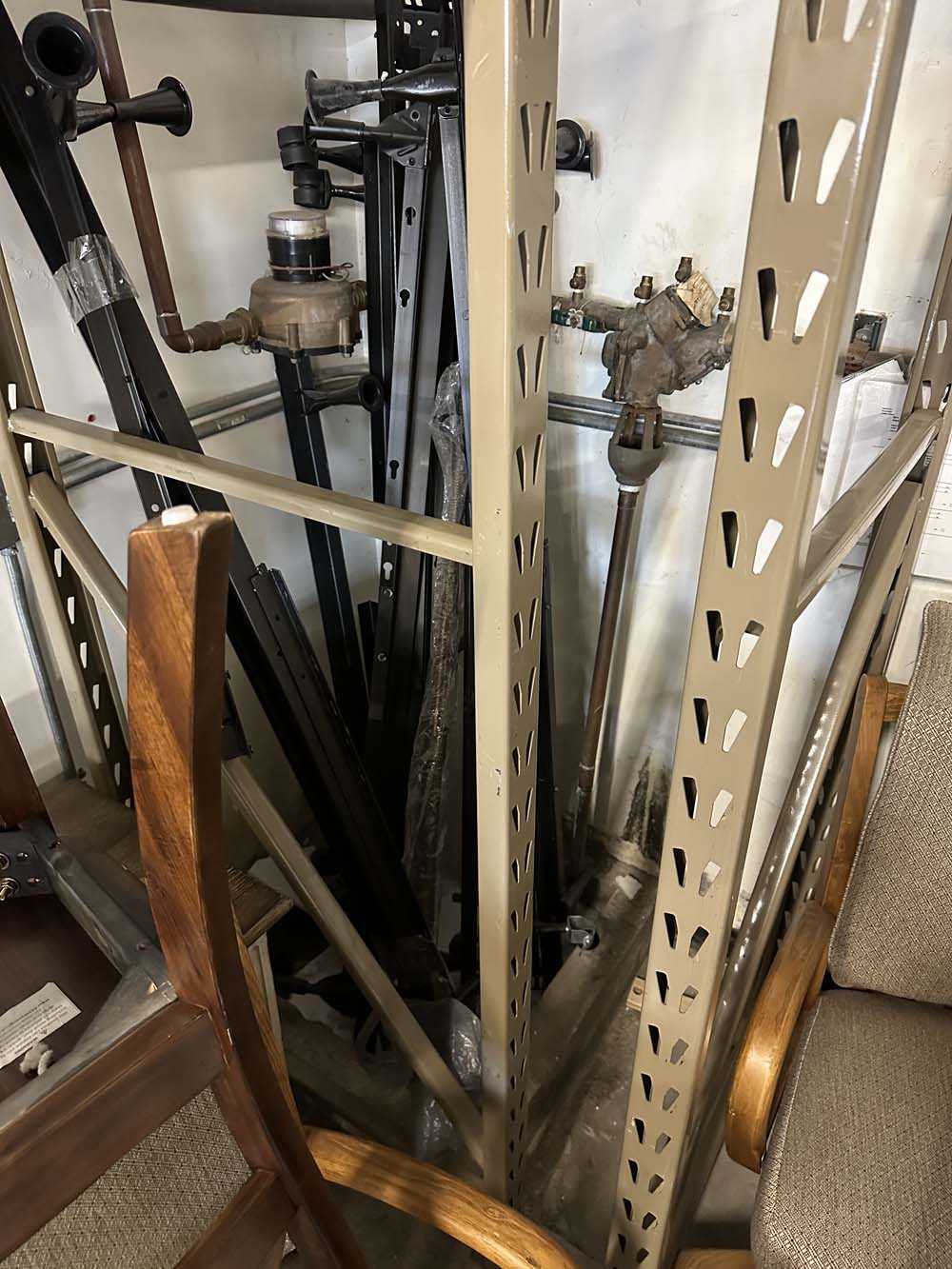

Meter No.: Undetermined - Water Service | Meter
2" Dia. (Service)
Remote Fire Room
Location: Adjacent - SE of Rear Door
Meter No.: 3002864
(Sub-Metered In Space) - Sanitary Sewer Cleanout
Location: Undetermined
Vicinity Map...
Electrical

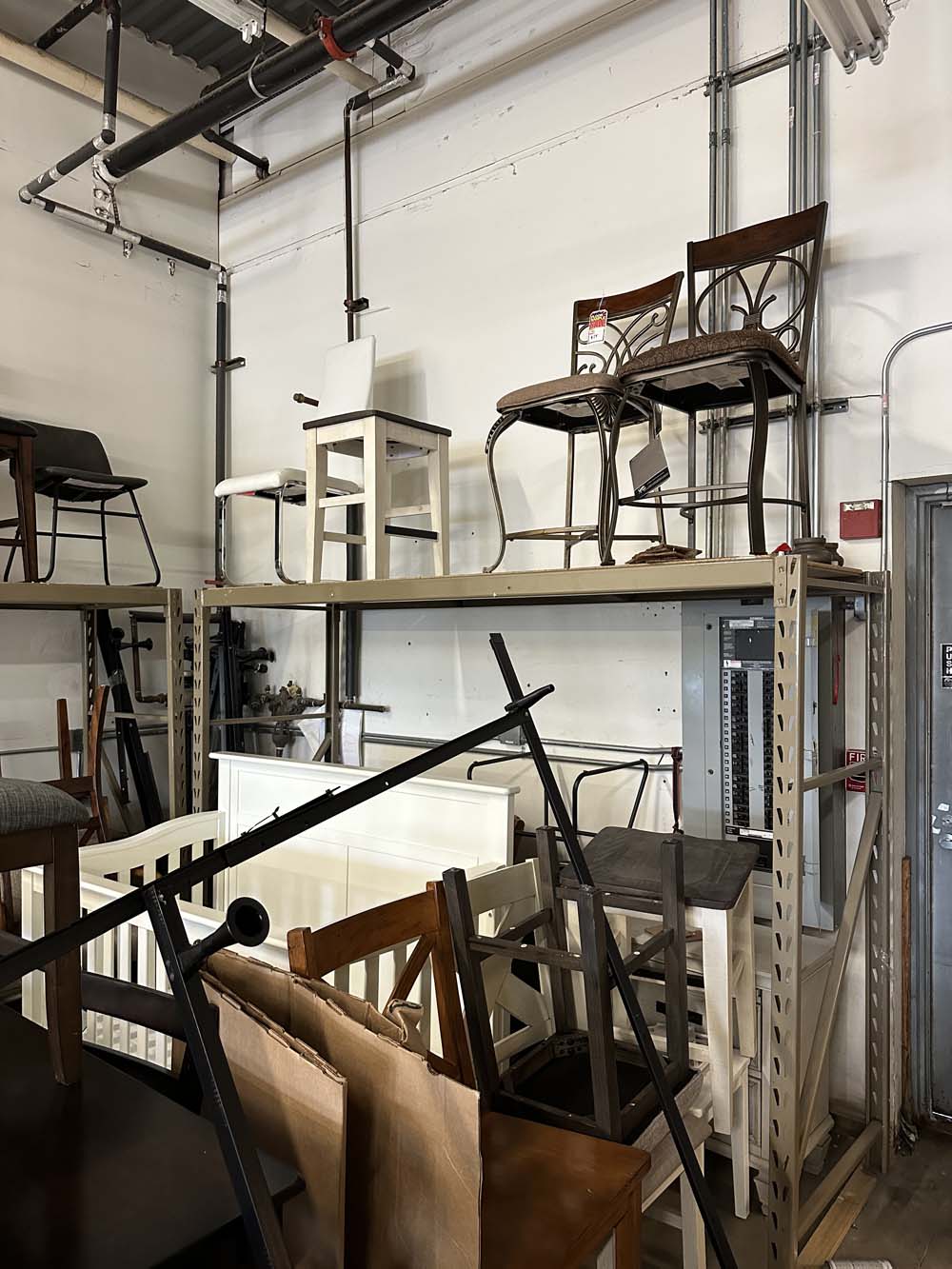

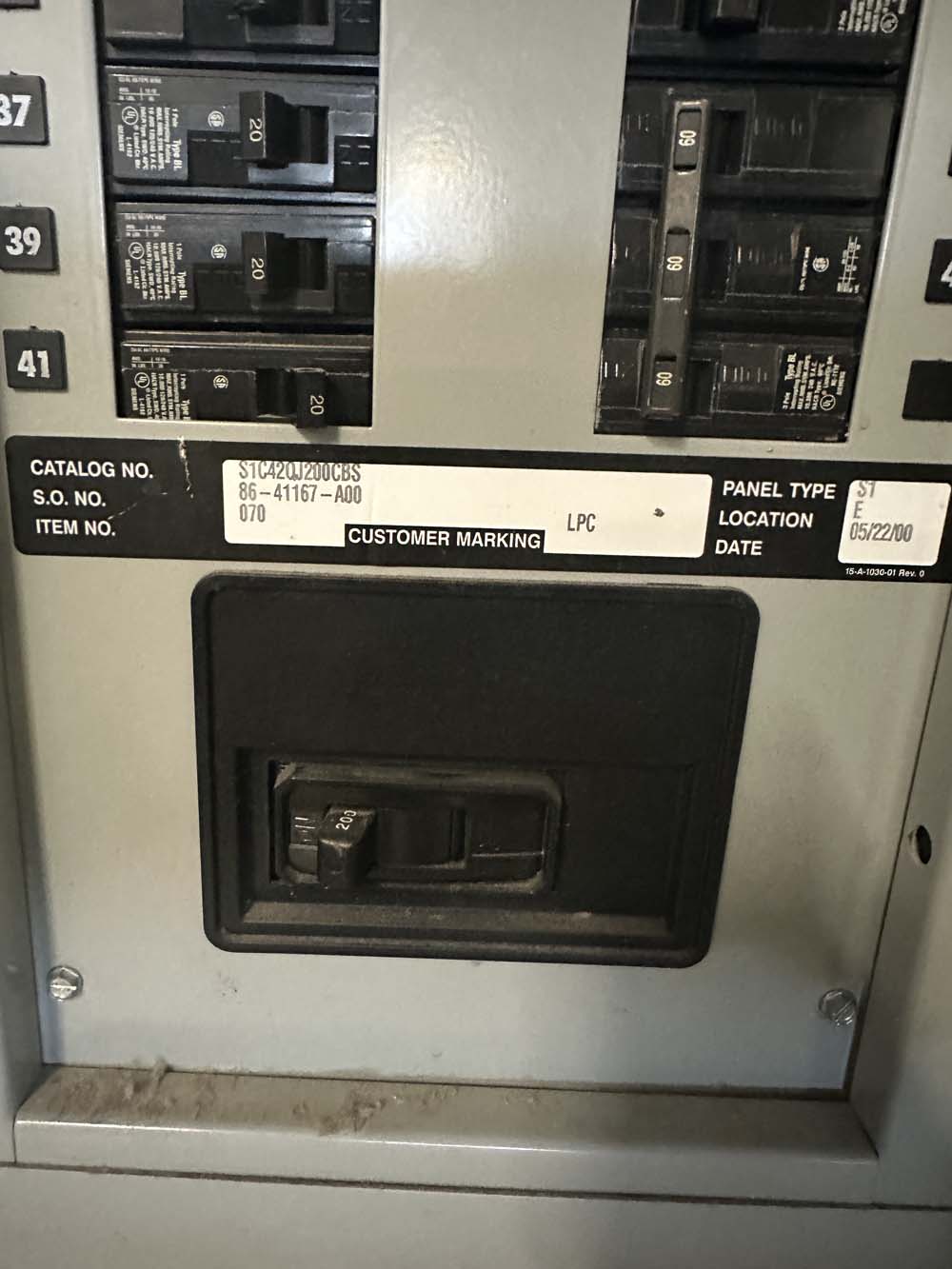

Electrical Panelboard
Siemens
Catolog #: S1C42QJ200CBS
Voltage: 208Y/120
Amps: 250
Phase: 3Ph|4W
Circuits: 42 Circuits (Used)
Main Breaker: Yes (200A)
Siemens
Catolog #: S1C42QJ200CBS
Voltage: 208Y/120
Amps: 250
Phase: 3Ph|4W
Circuits: 42 Circuits (Used)
Main Breaker: Yes (200A)
Mechanical

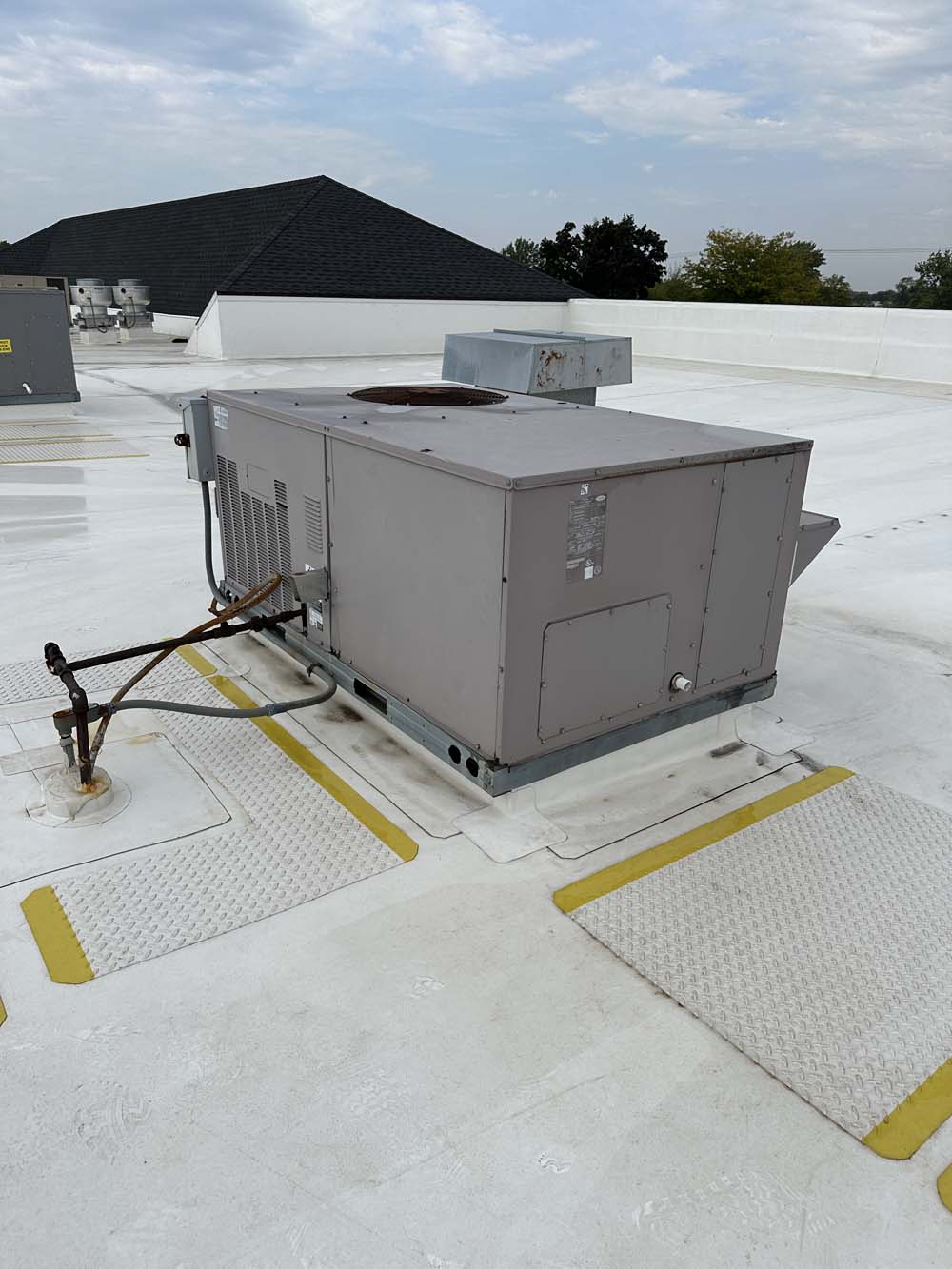

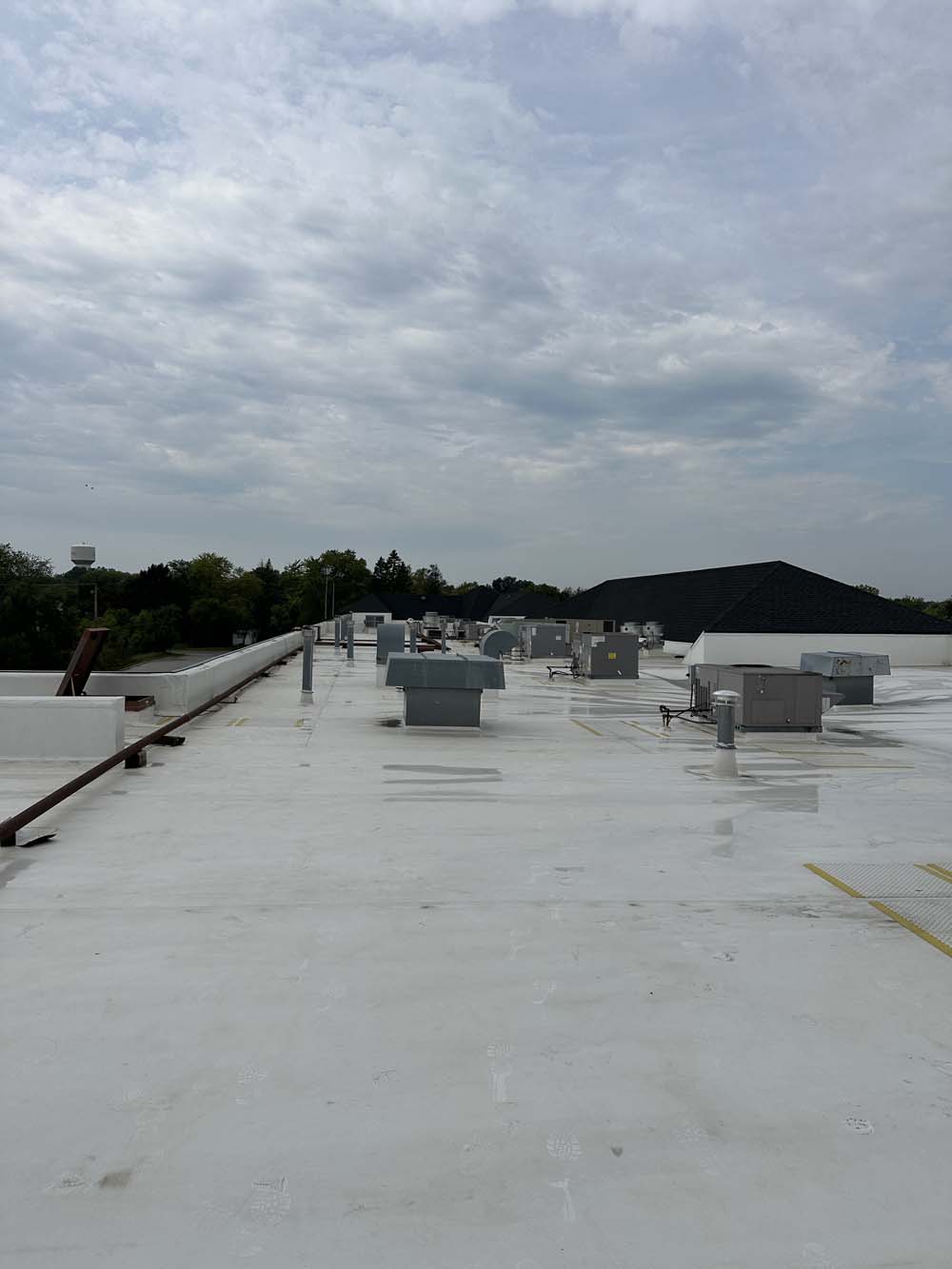

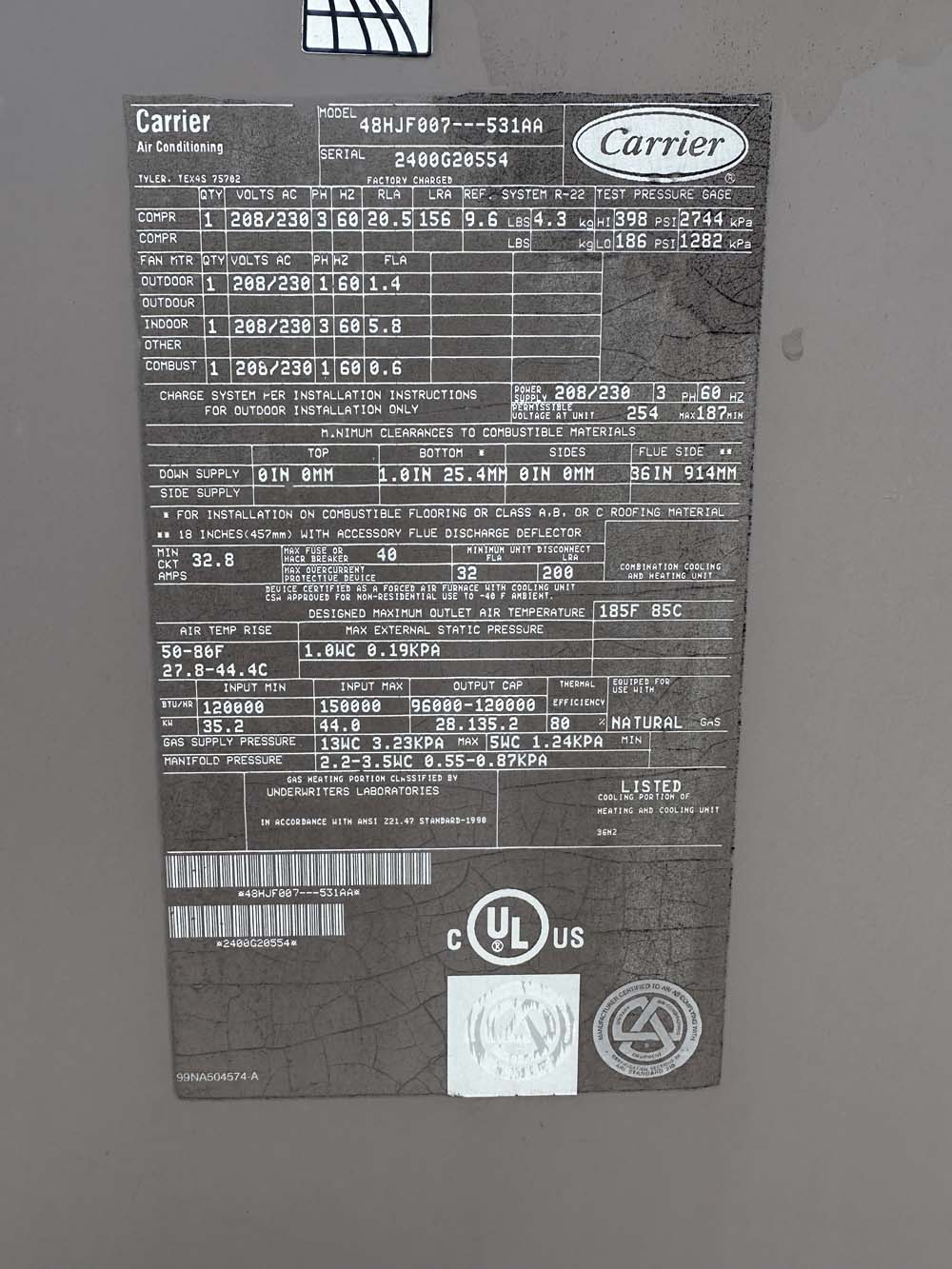

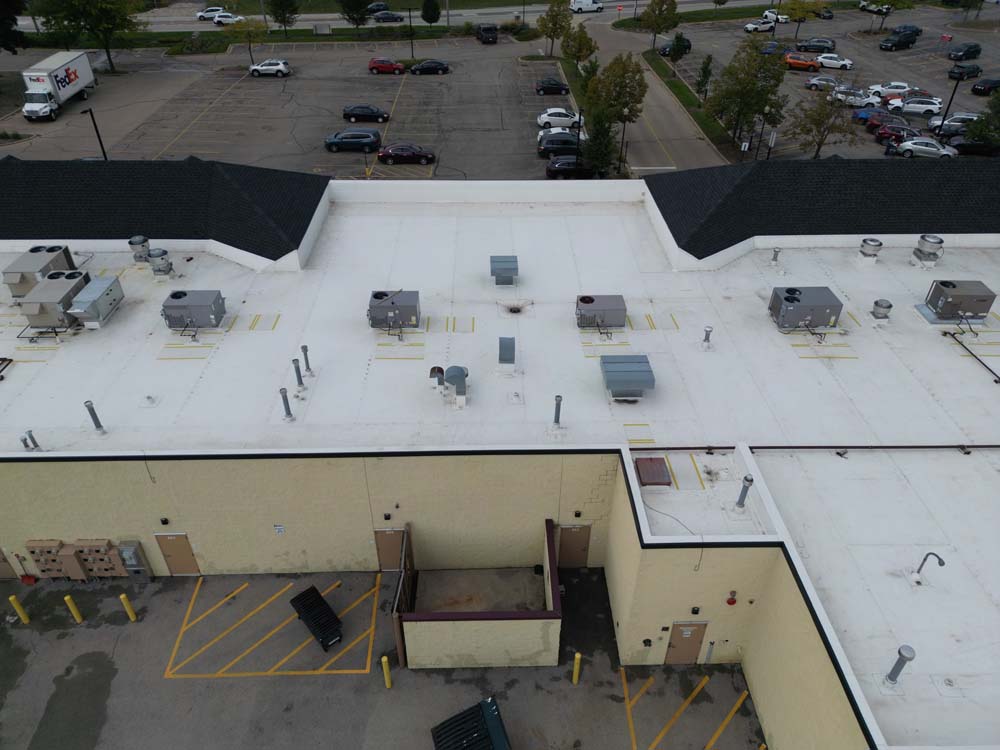

Rooftop Unit
Carrier
Model #: 48HJF007-531AA
Serial #: 2400G20554
Capacity: 6 Ton
Manf. Date: Jun 2000
Comments: Gas
Carrier
Model #: 48HJF007-531AA
Serial #: 2400G20554
Capacity: 6 Ton
Manf. Date: Jun 2000
Comments: Gas
- A Complete Project Download Link
Includes the following... - --------------------------------------
- Space Condition Report (.pdf); w/ Accessibility Assessment

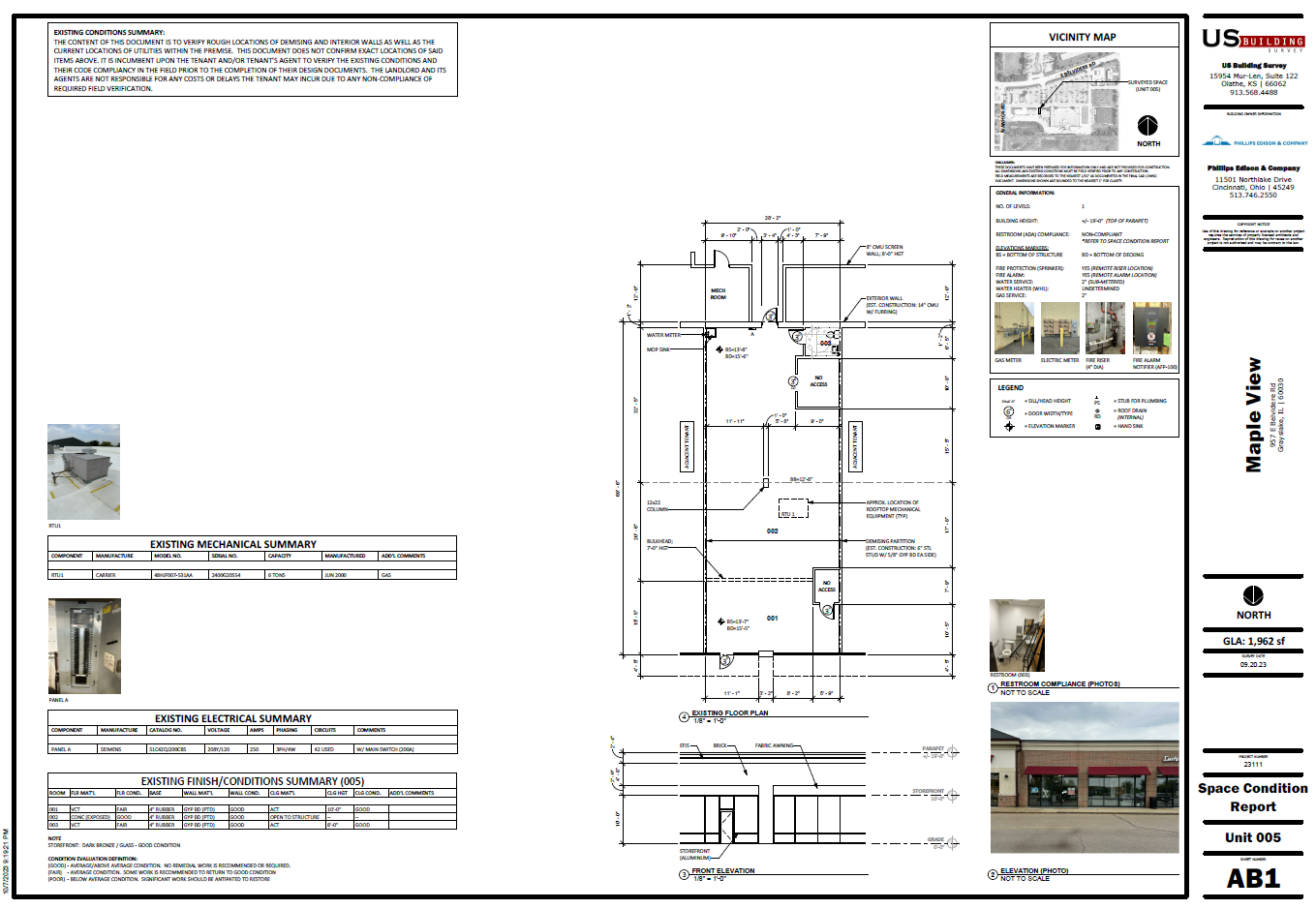

- Floor Plan (.pdf); Adobe Acrobat File
- Floor Plan (.dwg); AutoCad File
- Photos; w/ Contact Sheets

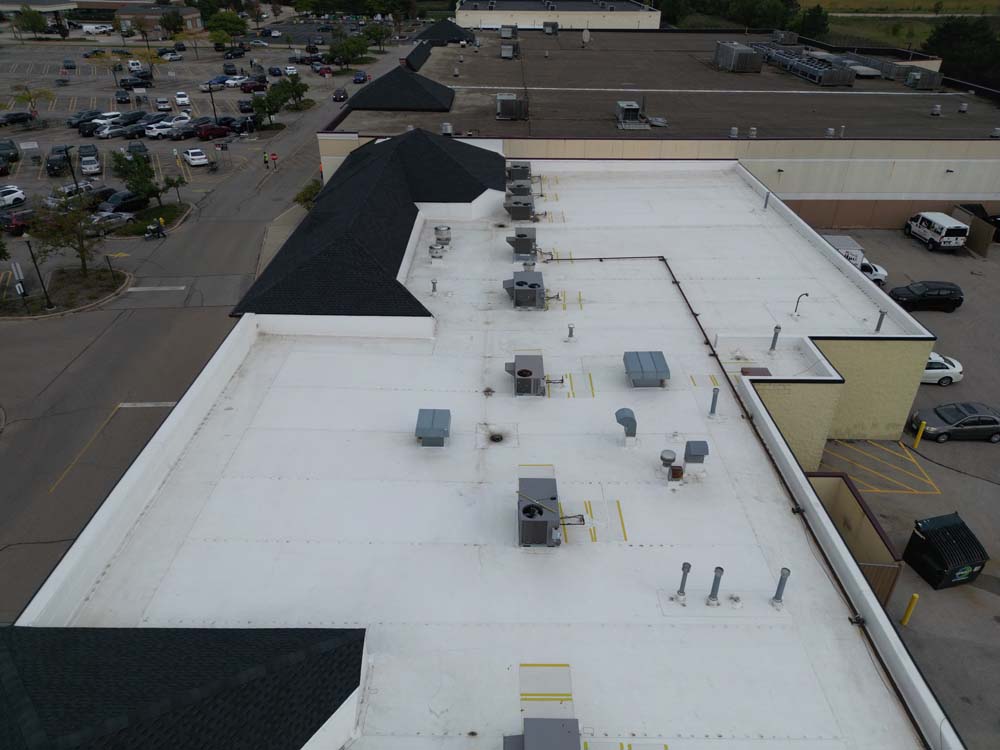

- Photos (Aerial Rooftop); w/ Video Clips | 360 Images
- Virtual Model (.zip); Matterport Virtual Model File
- ** Please note: We can transfer the online virtual model to any Matterport account per request...
